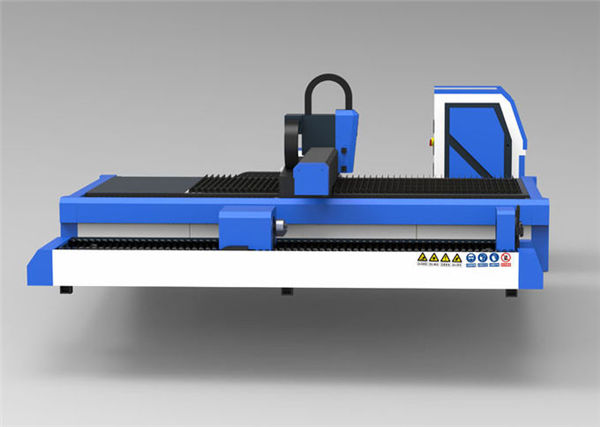

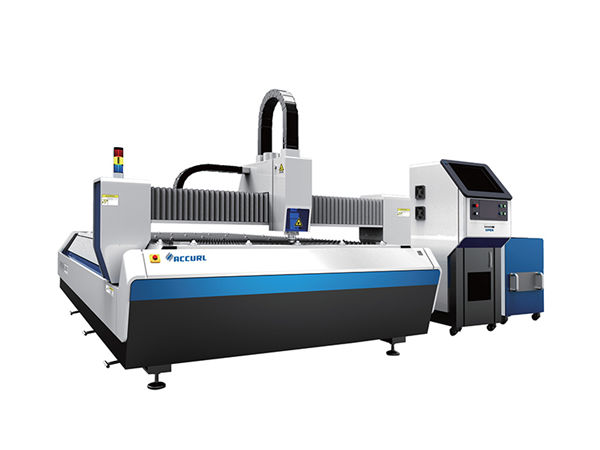

middle power stainless steel laser cutting machine ,1500w laser sheet cutting machine

Berhemên Hilbera

Sertîfîkirin: CE / FDA
Mercên Kirîn & Firotinê:
Hêjmara hindiktirîn: 1 SET
Bihayê: Bûyera USD-ê
Hûrgulên pakkirinê: Kaxezek çirûskê ya bi girêdana zindî
Wexta radestkirinê: 15 - 30 Rojên Kar
Mercên Payment: T / T, L / C, Yekîtiya Rojavayî
Ability Supply: 2000 Yekîneyên per salê

Danasîna Hilbera Berfireh

Qada Berfirehkirinê:	1500 * 3000mm	Mode Cooling:	Germbûna avê
Hêza Laser:	1500W	Nermalava Kontrolê:	Qedera
Rewş:	Nşh	Max Load Worktable:	1000kg
CNC Or Not:	Erê	Dirêjbûna Laser:	1060-1080nm
Paqijkirina Pozîsyarî:	± 0,05 Mm	Voltage Working:	380V / 50Hz

Danasîna hilberê

1. The machine is welded with a high-intensity whole sheet, and after high temperature annealing,the machine can be used for 20 years without any deformation.
2. With imported precision gear and rack, linear guide rail and transmission,the machine tool is of high precision, high efficiency and high stability.
3. Equipped with advanced wireless handheld terminal,the machine can be operated with remote control.
4. The equipment adopts the laser special speed matching system, high performance servo motor drive, is the integration of pneumatic, mechanical, photoelectric, numerical control and other advanced technologies as one of the high-tech products.

Taybetmendiyên

1. Excellent overall performance, changeable working tables, 7 seconds to finish high speed changing, improve working efficiency of more than 48%.
2. The machine tool includes loading area and processing area, standard configuration is changeable working tables, auto change the workpiece between processing area and loading area by motor, convenient to upload and download. With the design of changeable working table, could prepare the next uploading while processing, highly improved working efficieny.
3. Equipped with exhaust device, have good exhausting effect and little pollution.
4. Small occupied area, high system integration, convenient to operate and maintenance, 24 hours continuous working.
5. The water chiller has good safety protection function, such as over temperature, lack phase, pressure, water-break, undervoltage, overload, etc. With stable performance, satisfied the cooling requirement of laser source.

Fiber Laser Cutting Machine Different Laser Sources Comparing

Model of Laser Source	Mûyik	CO2	Disc
Electro-optical Conversion Efficiency	30%	10%	15%
Max. Output	50Kw	20Kw	8Kw
BPP(4/5Kw)	<2.5	6	8
Life of Diode Pumped	>100,000	NA.	10,000
Occupied Area(4/5Kw)	<1M2	3M2	>4M2
Maintenance	no need	need	Often
Soft Processing	more suitable	unsuitable	suitable
Stability	best	good	good
Absorption rate%--steel	35	12	35
Absorption rate%--aluminum	7	2	7
Replaced Parts	High brightness semiconductor laser broadband single core, more than 100,000 hours of pump. Damage to one of the semiconductor does not affect the normal work of the laser, but less and less power, because each semiconductor pump sources are used to separate each other.	Laser work requires gas supplement, reflection lens replacement.	Semiconductor Bar (array) maximum pulse model 5000 hours or 10000 hours continuous mode. Laser use the pump sources are used in the process of often need to change, each time change need to be between $200,000-230,000.

Applied materials of 1500W Fiber Laser Cutting Machine

Qutabûna fîberê bi gelemperî ji bo birrîna hûrgelên karbonê, qehremaniya nerm, polayê zingarnefîl, polîcona silicon, alloy aluminium, alloy titanium, qefesa pola galvanized, panela hilbijartinê, plakaya zincîreyê aluminium, baker û gelek celeb materyalên metal hene. Ew qeçek cnc lazer dikare were bikar anîn ku qutkirina qalindiya bilind. Ev jî dikare jê re dibêjin makîneya qefikandina fêkî, qefesa lîreyê fiber optîk, qutiya qerase ya ji bo metal, qefesa qehweyî, qutkirina qefesa karbonê, qutiyên laş ên cnc.

Parzûna teknîkî

Qada xebatê	3000 * 1500mm
Controller + şopgerê Heigh	Qedera
Avkaniya Laser	Fiber Laser Source 1500W
Dirêjbûn Wave	1070nm ± 10nm
Serê Laser	Bixwe
Gear û Rack	Almanya
Rêbera Rail	Taiwanese HIWIN
Rastkirina pozîsyonê	4 0,04 mm
Qirika qehirî	1-20mm
Leza leza herî zêde	40000 mm / min (li gorî materyalan)
Voltaja kar	AC220V / 110V ± 10% 50HZ / 60HZ
Width line min	.120.12mm
Dezgeh	Yaskawa servo 850W + FASTON kêmker
Z Axe	Barbira Yaskawa 400W +
Germkirin	Germbûna avê
Awayî	10 mm Paqijiya çeliqandî ya Welded, Gantry Alloy Alloy
Kevne hêz	≤7.5KW

Performance for 1500W Fiber Laser Cutting Machine

1.The machine enjoys outstanding performances with high cutting speed, high efficiency, safety and stability. And diode pump solid state laser has the advantage of longer working life, free maintenance and the highest photo-electric conversion efficiency. It also ensures a small divergence angle and light beams of good quality.
2. The light spot enjoys good quality and small heat deformation. Besides, cutting seams are even and nice.
3. After tempering treatment, steel frames with high rigidity are of high vibration-absorbed performance with tempering treatment. And frames with gantry structure are one-step processed in large CNC gantry machining center. With optimized structure, the machine enjoys stability and high accuracy.
4. Imported servo motors and sophisticated direction transmission mechanism ensure high steadiness and accuracy.
5. An intuitive human-machine interface (HMI) with many practical functions is easy to operate.
6. An imported ball screw and linear guides ensure transmission and direction.
7. The sealed cutting head automatically tracks work pieces and has the function of anti-collision.
8. The power supply of the machine is designed with automatic safety protection, and features fault alarm.
9. With fashionable, delicate and artistic design, the compact machine covers smaller floor area without scattered parts. And it’s easy to operate the machine.
